LEVEL XR
Mondraker
Enduro

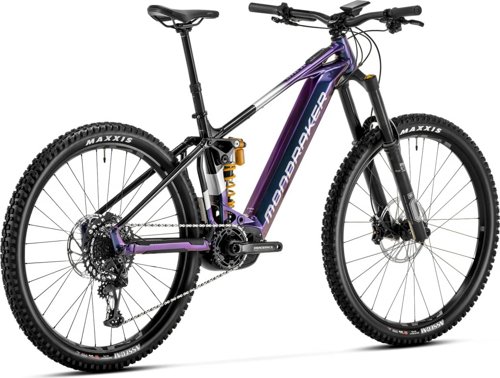

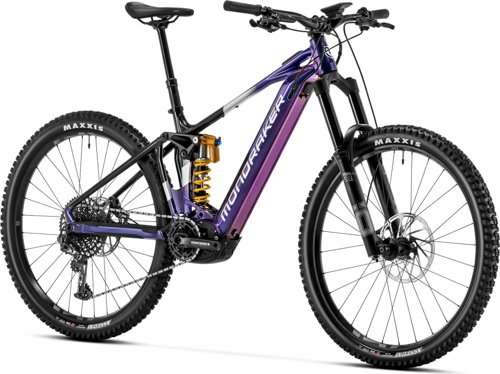

LEVEL XR es una e-MTB enduro (2024) by Mondraker, de la serie Level. En uso real, es un gran match para quienes buscan un conjunto off-road equilibrado. Posición: equilibrada. Terreno: orientada a senderos técnicos y terreno más roto. Según las métricas, destacan suspensión capaz en terreno roto, más cómoda en rutas largas y gran potencial de velocidad en terreno rodador. Aun así, Lo que sacrifica un poco es un ajuste más específico que puede encajar a menos gente y el value depende más de prioridades que del precio puro. Siguiente paso: compara esta bici en MatchBikes.com.
6.4
Valoración

Image 1 of 4
Score Summary
Rendimiento
7.9
Valor
2.5
Ajuste
6.5
Rendimiento
Built for speed and efficiency
Velocidad
7.4
Alta
Eficiencia en subida
5.3
Polivalente
Suspensión
9.0
Lista para terreno extremo
Ajuste
Dialed-in Fit & Comfort
Posición de conducción
6.8
Equilibrada
Flexibilidad de ajuste
2.8
Ajuste específico de carrera
Comodidad
8.5
Cómoda
Valor
Relación calidad-precio
2.5
Sobrevalorada
Rango de superficie
Senderos técnicosBatería
Batería
4.0
Salidas regulares
Especificaciones
General
Marca
Mondraker
Modelo
LEVEL XR
Año
2024
Precio
$9,986
Peso
25.9 kg
Categoría
E-bikeMountain
Subcategoría
Enduro
Grupo
X01 Eagle, GX Eagle
Cuadro
Cuadro
Level 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 170mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers
Horquilla de Suspensión
Öhlins RXF 38 M.2 29, 180mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Amortiguador Trasero
Öhlins TTX22M.2 225x75mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload. Trunnion top mount, 25x10mm bottom bushings
Tipo de suspensión
Full
Transmisión
Palancas de Cambio
SRAM Trigger GX Eagle, 12s, X-Actuation 1:1, single click
Desviador Trasero
SRAM X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Biela
Race Face Aeffect ebike, 165mm, Rings: SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Cadena
SRAM GX Eagle, 12s, Powerlock
Ruedas
Buje Delantero
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Buje Trasero
e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub
Llantas
e*thirteen E*Spec Plus, IW30 Hookless, 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F / 32R spokes
Radios
e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers
Neumáticos
Front: Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead, Rear: Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Frenos
Tipo de freno
Hydraulic Disc
Descripción del freno
Front: SRAM Code Silver Stealth, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads, Rear: SRAM Code Silver Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Palancas de Freno
SRAM Code Silver Stealth, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
Cockpit
Potencia
Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Manillar
Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Puños
Onoff Desert, 1lock-on, 135mm
Asiento
Sillín
FIZIK Terra Aidon X5 145mm
Tija de Sillín
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
Componentes Eléctricos
Motor
Bosch Performance Line CX Cruise (25 km/h) GEN4 SMART SYSTEM
Batería
Bosch Powertube 750Wh
Autonomía
4.0

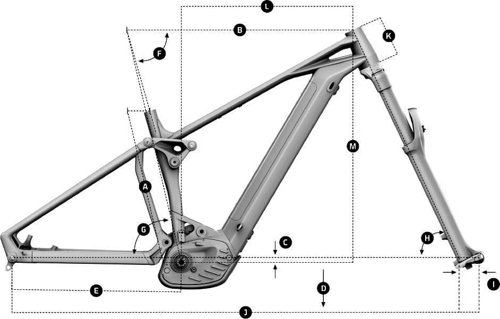

Geometría
| Medida | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.404 mm | 1.345 mm | 1.331 mm | 1.278 mm |
| Bottom Bracket Height | 357 mm | 357 mm | 357 mm | 357 mm |
| Front Center | 795 mm | 815 mm | 835 mm | 855 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 117 mm | 117 mm | 126 mm | 126 mm |
| Stack | 632 mm | 632 mm | 652 mm | 652 mm |
| Reach | 450 mm | 470 mm | 490 mm | 510 mm |
| Top Tube Length | 602 mm | 622 mm | 647 mm | 667 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 380 mm | 420 mm | 450 mm | 490 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 110 mm | 110 mm | 130 mm | 130 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1250 mm | 1270 mm | 1290 mm | 1310 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
