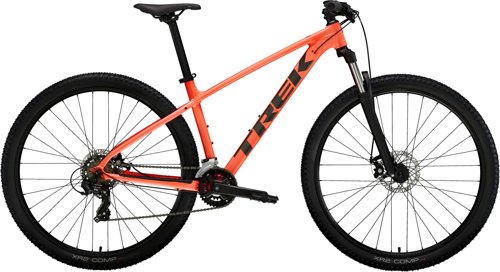

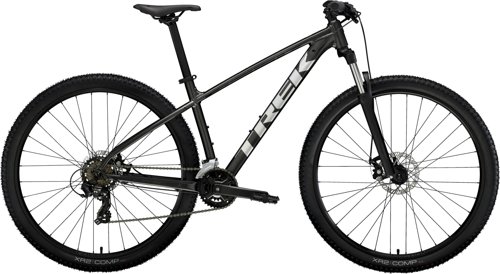

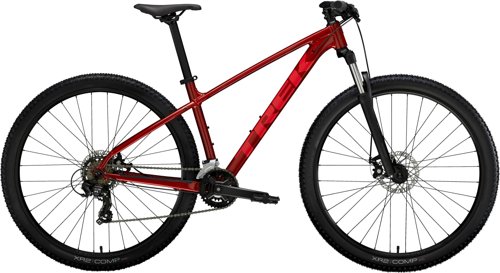

Marlin 4 Gen 2
Trek
Crosscountry
Marlin 4 Gen 2 est un VTT cross-country (2025) de Trek, dans la série Marlin. Ce vélo vise des riders qui cherchent un setup off-road équilibré. Position: équilibrée. Profil terrain: idéal pour des sentiers roulants. D’après les métriques, les forces clés sont un très bon rapport qualité/prix, très à l’aise en montée sur efforts longs et un vrai potentiel de vitesse sur terrain roulant. Ajoutez-le au comparateur sur MatchBikes.com pour voir où il se place.
7.5
Note

Image 1 of 5
Score Summary
Performance
7.2
Valeur
9.8
Ajustement
6.4
Performance
Built for speed and efficiency
Vitesse
6.0
Moyenne
Efficacité en montée
9.1
Chèvre de montagne
Suspension
5.0
Contrôle trail assuré
Ajustement
Dialed-in Fit & Comfort
Position de conduite
5.9
Équilibrée
Flexibilité de l'ajustement
6.7
Modérément ajustable
Confort de conduite
6.4
Équilibrée
Valeur
Rapport qualité-prix
9.8
Rapport qualité-prix exceptionnel
Variété de surfaces
Trails fluidesSpécifications
Général
Marque
Trek
Modèle
Marlin 4 Gen 2
Année
2025
Prix
$581
Poids
14.6 kg
Catégorie
Mountain
Sous-catégorie
Crosscountry
Groupe
Tourney, Altus
Cadre
Cadre
Size: XS, S, Alpha Silver Aluminum, curved top tube, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR; Size: M, ML, L, XL, Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR
Fourche Suspendue
Size: XS, SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel; Size: S, SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel; Size: M, ML, L, XL, SR Suntour XCE 28, coil spring, preload, 46mm offset for 29'' wheel, 100mm QR, 100mm travel
Type de suspension
Hardtail
Transmission
Manettes de Changement
Size: XS, S, M, ML, L, XL, Shimano EF500, 8 speed; Size: XS, S, M, ML, L, XL, Shimano EF500, 7 speed
Dérailleur Arrière
Shimano Tourney TY300
Dérailleur Avant
Shimano Altus M315, 34.9mm clamp, top swing, dual pull
Cassette
Shimano TZ500, 14-34, 7 speed

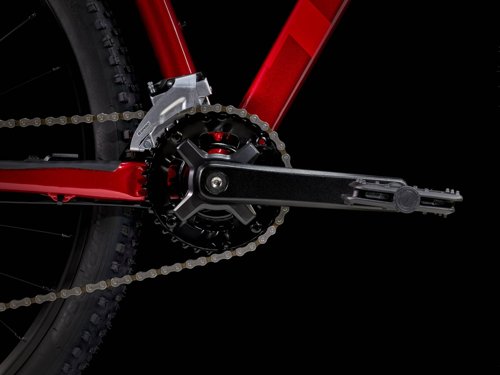

Pédalier
Size: XS, S, M, ProWheel TM-CY10, 36/22, 170mm length; Size: ML, L, XL, ProWheel TM-CY10, 36/22, 175mm length
Boîtier de Pédalier
VP BC73, 73mm, threaded cartridge
Chaîne
KMC Z7, 7 speed
Roues
Moyeu Avant
Formula DC-20, alloy, 6-bolt, 5x100mm QR
Moyeu Arrière
Formula DC-31, alloy, 6-bolt, 6/7/8 speed freewheel, 135x5mm QR
Jantes
Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
Rayons
14g stainless steel, black
Pneus
Size: XS, S, Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20''; Size: M, ML, L, XL, Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20''
Freins
Type de frein
Mechanical Disc
Description des freins
Size: XS, S, M, ML, L, XL, Tektro MD-M280 mechanical disc; Size: XS, S, M, ML, L, XL, Tektro MD-M281 mechanical disc; Size: XS, S, M, ML, L, XL, Tektro MD-M280 mechanical disc, 160mm rotor; Size: XS, S, M, ML, L, XL, Tektro MD-M281 mechanical disc, 160mm rotor
Cockpit
Potence
Size: XS, S, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length; Size: M, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length; Size: ML, L, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: XL, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 80mm length
Cintre
Size: XS, S, Bontrager alloy, 31.8mm, 5mm rise, 690mm width; Size: M, ML, L, XL, Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Poignées
Bontrager XR Endurance Comp, lock-on
Assise
Selle
Bontrager Verse Short, stainless steel rails
Tige de Selle
Size: XS, S, Bontrager alloy, 31.6mm, 12mm offset, 330mm length; Size: M, Bontrager alloy, 31.6mm, 12mm offset, 360mm length; Size: ML, L, XL, Bontrager alloy, 31.6mm, 12mm offset, 400mm length
Géométrie
| Mesure | 13.5" | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.503 mm | 1.491 mm | 1.44 mm | 1.387 mm | 1.355 mm | 1.352 mm |
| Bottom Bracket Height | 292 mm | 302 mm | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 618 mm | 632 mm | 668 mm | 684 mm | 705 mm | 727 mm |
| Rake | 44 mm | 44 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 88 mm | 88 mm | 93 mm | 93 mm | 93 mm | 93 mm |
| Stack | 565 mm | 574 mm | 602 mm | 602 mm | 611 mm | 630 mm |
| Reach | 376 mm | 385 mm | 418 mm | 434 mm | 451 mm | 466 mm |
| Top Tube Length | 544 mm | 555 mm | 602 mm | 618 mm | 638 mm | 659 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 343 mm | 368 mm | 419 mm | 444 mm | 470 mm | 521 mm |
| Head Tube Angle | 69.3 ° | 69.3 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 90 mm | 90 mm | 90 mm | 90 mm | 100 mm | 120 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1049 mm | 1066 mm | 1100 mm | 1116 mm | 1137 mm | 1159 mm |
| Bottom Bracket Drop | 58 mm | 48 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Standover Height | 658 mm | 686 mm | 748 mm | 758 mm | 757 mm | 769 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" | 29" |
| Rider Min Height | 145 cm | 154 cm | 164 cm | 173 cm | 177 cm | 187 cm |
| Rider Max Height | 156 cm | 166 cm | 176 cm | 180 cm | 189 cm | 196 cm |
