Marlin 7 Gen 3
Trek
Crosscountry
Marlin 7 Gen 3 est un VTT cross-country (2025) par Trek, dans la série Marlin. Idéal pour des riders qui veulent un ressenti off-road plus actif et orienté performance. Position: sportive et active. Profil terrain: idéal pour des sentiers roulants. D’après les métriques, les forces clés sont très à l’aise en montée sur efforts longs, un très bon rapport qualité/prix et un bon équilibre entre confort et réactivité. Face à des spécialistes, le compromis est moins axé vitesse pure que les montages orientés performance. Utilisez MatchBikes.com pour comparer ce vélo à des options cross-country voisines.
7.1
Note

+24
Image 1 of 30
Score Summary
Performance
6.6
Valeur
9.2
Ajustement
6.6
Performance
Built for speed and efficiency
Vitesse
4.2
Très faible
Efficacité en montée
9.5
Chèvre de montagne
Suspension
4.0
Amorti de base
Ajustement
Dialed-in Fit & Comfort
Position de conduite
7.1
Sportive
Flexibilité de l'ajustement
6.3
Modérément ajustable
Confort de conduite
6.5
Équilibrée
Valeur
Rapport qualité-prix
9.2
Rapport qualité-prix exceptionnel
Variété de surfaces
Trails fluidesSpécifications
Général
Marque
Trek
Modèle
Marlin 7 Gen 3
Année
2025
Prix
$1,207
Poids
15.03 kg
Catégorie
Mountain
Sous-catégorie
Crosscountry
Groupe
SX Eagle
Cadre
Cadre
Size: XXS, XS, Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew; Size: S, M, ML, L, XL, XXL, Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
Fourche Suspendue
Size: XXS, RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel; Size: XS, S, RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel; Size: M, ML, L, XL, XXL, RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 46mm offset for 29'' wheel, 100mm QR, 100mm travel
Type de suspension
Hardtail
Transmission
Manettes de Changement
SRAM SX Eagle, 12 speed

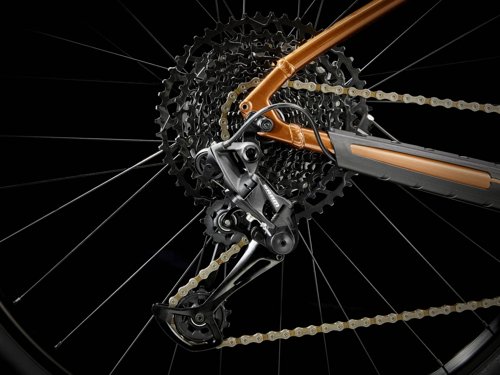

Dérailleur Arrière
SRAM SX Eagle, 12 speed
Cassette
SRAM PG-1210 Eagle, 11-50, 12 speed

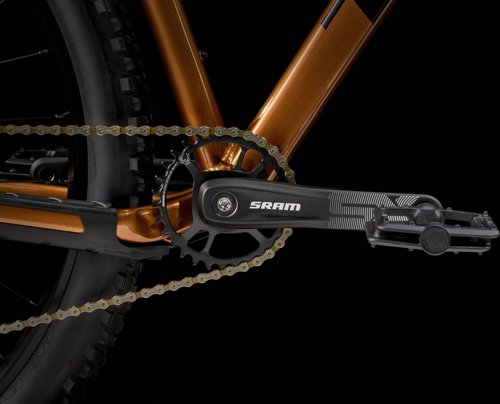

Pédalier
Size: XXS, SRAM SX Eagle, 30T steel ring, 49mm chainline, 155mm length; Size: XS, S, M, SRAM SX Eagle, 30T steel ring, 49mm chainline, 170mm length; Size: ML, L, XL, XXL, SRAM SX Eagle, 30T steel ring, 49mm chainline, 175mm length
Boîtier de Pédalier
Truvativ Powerspline, 73mm, threaded cartridge, 118mm spindle
Chaîne
SRAM SX Eagle, 12 speed
Roues
Moyeu Avant
Formula DC-20 LW, alloy, 6-bolt, 5x100mm QR
Moyeu Arrière
Formula DC-22LW, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
Jantes
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve
Pneus
Size: XXS, Maxxis Ardent, tubeless ready, EXO casing, folding bead, 60tpi, 26x2.40''; Size: XS, S, Maxxis Ardent, tubeless ready, EXO casing, folding bead, 60tpi, 27.5x2.40''; Size: M, ML, L, XL, XXL, Maxxis Ardent, tubeless ready, EXO casing, folding bead, 60tpi, 29x2.40''
Freins
Type de frein
Hydraulic Disc
Description des freins
Shimano MT200 hydraulic disc
Cockpit
Potence
Size: XXS, XS, S, Bontrager Comp, 31.8mm, 7 degree, 35mm length; Size: M, ML, L, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length; Size: XL, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length; Size: XXL, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length
Cintre
Size: XXS, XS, Bontrager alloy, 31.8mm, 5mm rise, 690mm width; Size: S, Bontrager alloy, 31.8mm, 15mm rise, 720mm width; Size: M, ML, L, XL, XXL, Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Poignées
Bontrager XR Trail Comp, nylon lock-on
Assise
Selle
Bontrager Verse Short, stainless steel rails
Tige de Selle
Size: XXS, XS, S, TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length; Size: M, TranzX JD-YSP18, 130mm travel, internal routing, 31.6mm, 425mm length; Size: ML, L, XL, XXL, TranzX JD-YSP18, 150mm travel, internal routing, 31.6mm, 470mm length
Géométrie
| Mesure | 14.5" | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.444 mm | 1.378 mm | 1.384 mm | 1.349 mm | 1.315 mm | 1.287 mm |
| Bottom Bracket Height | 313 mm | 313 mm | 308 mm | 308 mm | 308 mm | 308 mm |
| Front Center | 663 mm | 692 mm | 732 mm | 749 mm | 765 mm | 798 mm |
| Rake | 42 mm | 42 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 110 mm | 110 mm | 110 mm | 110 mm | 110 mm | 110 mm |
| Stack | 563 mm | 572 mm | 609 mm | 614 mm | 618 mm | 637 mm |
| Reach | 390 mm | 415 mm | 440 mm | 455 mm | 470 mm | 495 mm |
| Top Tube Length | 551 mm | 579 mm | 615 mm | 631 mm | 647 mm | 678 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 340 mm | 370 mm | 420 mm | 435 mm | 450 mm | 500 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 90 mm | 100 mm | 105 mm | 110 mm | 115 mm | 135 mm |
| Chainstay Length | 433 mm | 433 mm | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1092 mm | 1121 mm | 1163 mm | 1180 mm | 1197 mm | 1230 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 658 mm | 692 mm | 747 mm | 759 mm | 771 mm | 791 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" | 29" |
