eONE-FORTY 8000
Merida
Trail

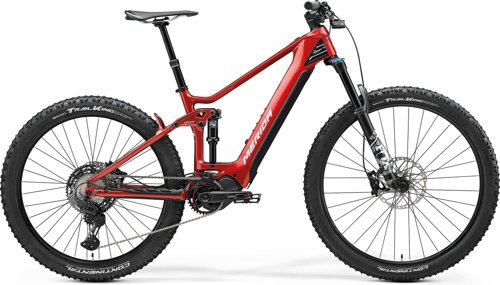

eONE-FORTY 8000 is a carbon electric trail mountain bike (2023), by Merida, from the Eone lineup. It suits riders who want a more active, performance-leaning off-road feel, with a setup that gives you a sporty, active riding position, with a surface profile that is well suited to natural trails and mixed off-road terrain. The main strengths in the metrics are strong climbing friendliness for sustained uphill riding, a balanced ride feel between comfort and directness, and good fit flexibility for dialing in rider position. The main trade-off is battery range that is better for shorter daily use than long all-day outings. Compare this bike on MatchBikes.com to similar trail models.
Rating

Score Summary
Performance
Built for speed and efficiency
Fit
Dialed-in Fit & Comfort
Value
Battery
Specifications
General
Frame
Drivetrain
Wheels
Brakes
Cockpit
Seat
E-Bike Components
Geometry
| Measurement | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.45 mm | 1.4 mm | 1.37 mm | 1.34 mm |
| Bottom Bracket Height | 331 mm | 331 mm | 331 mm | 331 mm | 331 mm |
| Front Center | 722 mm | 744 mm | 766 mm | 792 mm | 818 mm |
| Rake | 47 mm | 47 mm | 47 mm | 48 mm | 48 mm |
| Trail | 103 mm | 103 mm | 103 mm | 102 mm | 102 mm |
| Stack | 627 mm | 631.5 mm | 636 mm | 649.5 mm | 663 mm |
| Reach | 415 mm | 434.5 mm | 454.5 mm | 474.5 mm | 494.5 mm |
| Top Tube Length | 566 mm | 587 mm | 608 mm | 631 mm | 655 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 405 mm | 420 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 110 mm | 115 mm | 120 mm | 135 mm | 150 mm |
| Chainstay Length | 444 mm | 444 mm | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1165 mm | 1187 mm | 1209 mm | 1235 mm | 1261 mm |
| Bottom Bracket Drop | 24 mm | 24 mm | 24 mm | 24 mm | 24 mm |
| Standover Height | 741 mm | 736 mm | 732 mm | 739 mm | 753 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
