M29 EXPERT
Intense
Downhill
M29 EXPERT è una MTB downhill (2023) di Intense. È ideale per chi cerca un feeling off-road più attivo e orientato alla performance. Postura: sportiva e attiva. Uso: più a suo agio in bike park (gravity). I principali punti nelle metriche MatchBikes sono sospensioni capaci su terreno sconnesso e un feeling più confortevole sulle lunghe. Da tenere presente: meno focus sulla velocità pura rispetto ai setup più race. Confronta questa bici su MatchBikes.com con modelli downhill simili.
6.7
Valutazione

Image 1 of 2
Score Summary
Prestazioni
6.4
Valore
6.1
Vestibilità
7.8
Prestazioni
Built for speed and efficiency
Velocità
1.8
Molto bassa
Efficienza in Salita
2.2
Pesante ma gestibile
Sospensione
10.0
Pronta per terreni estremi
Vestibilità
Dialed-in Fit & Comfort
Posizione di Guida
7.0
Sportiva
Flessibilità Vestibilità
6.3
Moderatamente regolabile
Comfort di Guida
8.8
Confortevole
Valore
Rapporto Qualità-Prezzo
6.1
Valore adeguato
Gamma Superfici
Bike ParkSpecifiche
Generale
Marca
Intense
Modello
M29 EXPERT
Anno
2023
Prezzo
$5,499
Peso
17.77 kg
Categoria
Mountain
Sottocategoria
Downhill
Gruppo
GX, SRAM
Ruote
29"
Telaio
Telaio
Full carbon fiber front and rear triangle utilizing an optimized carbon layup for the Downhill category. Features fully guided Internal cable routing, carbon top link, titanium hardware, ISCG-05 tabs, threaded BB and molded frame protection. Concentric bottom link with integrated bearings. 208mm of rear wheel travel. Locking rear axle (157mm boost hub spacing)
Forcella Ammortizzata
DVO ONYX DC D1 203mm air spring, AVA volume adjustment, low speed compression and low speed rebound adjustment, solid front axle with pinch bolts (110mm boost spacing)>
Ammortizzatore Posteriore
DVO Jade Coil High/Low speed compression, low speed rebound adjustable bladder, spring preload adjustment spring, shock size/stroke: 250mm x 70mm, Upper hardware; 8mm x 30mm, Lower Mounting Hardware: 8mm x 30mm
Tipo di sospensione
Full
Trasmissione
Leve del Cambio
SRAM GC 7-speed
Deragliatore Posteriore
SRAM GX DH 7-speed
Cassetta
SRAM PG 720, DH 7-speed, 11-25t
Guarnitura
e*thirteen Helix DH 36t. 165mm length, 55mm chainline
Movimento Centrale
e*thirteen Threaded
Catena
SRAM PC 1110 7SP 108 Links
Ruote
Mozzo Anteriore
Front - e*thirteen hub 32h 6-bolt rotor 110mmx20mm boost / Rear - e*thirteen hub 32h 6-bolt rotor HG driver body 157mm x 12mm boost
Mozzo Posteriore
Front - e*thirteen hub 32h 6-bolt rotor 110mmx20mm boost / Rear - e*thirteen hub 32h 6-bolt rotor HG driver body 157mm x 12mm boost
Cerchi
e*thirteen LG1 DH 30MM Alloy Rim / e*thirteen alloy hub/boost
Pneumatici
MAXXIS Assegai WT 3C Maxx Grip DH 29"X2.50" -Front/Rear
Freni
Tipo di freno
Hydraulic Disc
Descrizione del freno
SRAM Code R 4-piston Rotors: 200mm 6-bolt 1.8mm Front/Rear
Cockpit
Attacco Manubrio
INTENSE DH Stem, 35mm, 50mm length
Manubrio
INTENSE Recon 35mm, 20mm ride, 800mm width
Manopole
INTENSE Logo Lock-On
Seduta
Sella
SDG I-FLY 2.0, I-Beam Rail
Reggisella
SDG I-Beam Alloy, 31.6mm/300mm

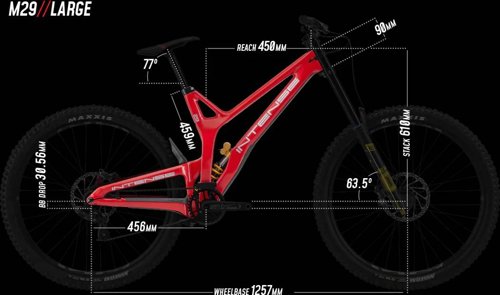

Geometria
| Misura | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.39 mm | 1.35 mm |
| Bottom Bracket Height | 353 mm | 353 mm | 353 mm |
| Front Center | 796 mm | 811 mm | 852 mm |
| Rake | 56 mm | 56 mm | 56 mm |
| Trail | 130 mm | 130 mm | 130 mm |
| Stack | 623 mm | 623 mm | 645 mm |
| Reach | 432 mm | 447 mm | 477 mm |
| Top Tube Length | 580 mm | 595 mm | 635 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 457 mm | 457 mm | 457 mm |
| Head Tube Angle | 62.7 ° | 62.7 ° | 62.7 ° |
| Head Tube Length | 90 mm | 90 mm | 115 mm |
| Chainstay Length | 462 mm | 462 mm | 462 mm |
| Wheelbase | 1257 mm | 1272 mm | 1313 mm |
| Bottom Bracket Drop | 24 mm | 24 mm | 24 mm |
| Standover Height | 821 mm | 821 mm | 821 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
