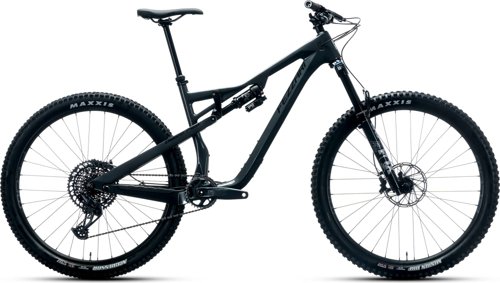

Delano Peak Comp
Fezzari
Trail
Delano Peak Comp è una MTB trail (2023) by Fezzari, nella serie Delano Peak. È ideale per chi cerca un feeling off-road più attivo e orientato alla performance. Postura: sportiva e attiva. Terreno: a suo agio su trail naturali e terreno misto. A livello di metriche, spicca per ottimo potenziale di velocità su scorrevole, un feeling più confortevole sulle lunghe e capacità in salita da all-rounder. Usa MatchBikes.com per confrontarla con alternative trail vicine.
7.2
Valutazione

Image 1 of 2
Score Summary
Prestazioni
7.1
Valore
6.8
Vestibilità
7.6
Prestazioni
Built for speed and efficiency
Velocità
7.4
Alta
Efficienza in Salita
7.0
Tuttofare
Sospensione
7.0
Pronta ai grandi impatti
Vestibilità
Dialed-in Fit & Comfort
Posizione di Guida
7.2
Sportiva
Flessibilità Vestibilità
6.9
Moderatamente regolabile
Comfort di Guida
8.0
Confortevole
Valore
Rapporto Qualità-Prezzo
6.8
Valore adeguato
Gamma Superfici
Trail naturaliSpecifiche
Generale
Marca
Fezzari
Modello
Delano Peak Comp
Anno
2023
Prezzo
$3,899
Categoria
Mountain
Sottocategoria
Trail
Gruppo
SLX, Shimano
Ruote
29"
Telaio
Telaio
Fezzari Delano Peak, CleanCast Carbon TetraLink Full Suspension, 135mm travel. Internal Future-Proof cable routing on top of Downtube. CleanCatch rattle-proof cable guides. SRAM Universal Derailleur Hanger. 2 Flush-mount bottle cages (M,L,XL)
Forcella Ammortizzata
DVO Diamond D1 29 150mm
Ammortizzatore Posteriore
DVO Topaz T2 210x50, 25x8mm/30x8mm, Custom Tuned
Tipo di sospensione
Full
Trasmissione
Leve del Cambio
Shimano SLX Trigger 12-Speed
Deragliatore Posteriore
Shimano SLX 12-Speed
Cassetta
Shimano SLX, 10-51t, 12-Speed
Guarnitura
Shimano FC-MT510-1
Movimento Centrale
Shimano BB-MT501 English Thread
Catena
Shimano SLX 12-Speed
Ruote
Mozzo Anteriore
Bear Pawls Sealed Bearings; F: 110x15mm thru axle, 32 hole, 6 bolt; R: 148x12mm thru axle, 32 hole, 6 bolt, MicroSpline driver
Mozzo Posteriore
Bear Pawls Sealed Bearings; F: 110x15mm thru axle, 32 hole, 6 bolt; R: 148x12mm thru axle, 32 hole, 6 bolt, MicroSpline driver
Cerchi
WTB i29, 29, 32 Hole, Disc Specific, Tubeless Ready
Raggi
Sapim Race
Pneumatici
Maxxis Minion DHF 29x2.5WT, EXO, Tubeless Ready. Aggressor 29x2.5WT, EXO, Tubeless Ready
Freni
Tipo di freno
Hydraulic Disc
Descrizione del freno
SRAM DB8, HS2 180/180mm F/R rotors
Cockpit
Attacco Manubrio
Fezzari Charger CNC 35 stem
Manubrio
Fezzari Team 35mm bar-customized sizing through 23-Point Custom Setup
Seduta
Sella
WTB Volts
Reggisella
X-Fusion Manic Dropper- customized sizing through 23-Point Custom Setup
Geometria
| Misura | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.419 mm | 1.341 mm | 1.308 mm | 1.284 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 744 mm | 777 mm | 801 mm | 827 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 133 mm | 124 mm | 134 mm | 134 mm |
| Stack | 610 mm | 610 mm | 628 mm | 642 mm |
| Reach | 430 mm | 455 mm | 480 mm | 500 mm |
| Top Tube Length | 560 mm | 593 mm | 613 mm | 637 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| Seat Tube Length | 400 mm | 420 mm | 445 mm | 460 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 95 mm | 95 mm | 115 mm | 130 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1176 mm | 1209 mm | 1234 mm | 1260 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm |
| Standover Height | 734 mm | 741 mm | 751 mm | 763 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
