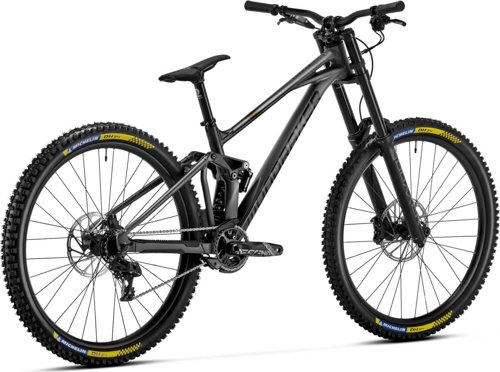

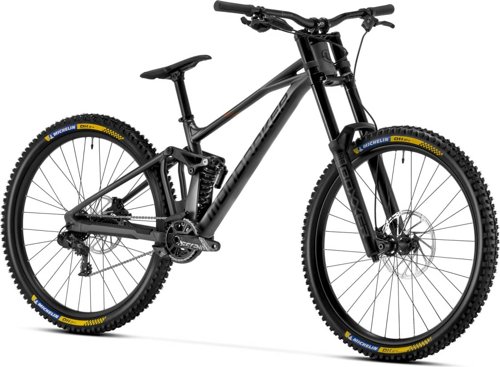

SUMMUM
Mondraker
Downhill
SUMMUM è una MTB downhill (2023) di Mondraker, parte della famiglia Summum. È ideale per chi cerca un setup off-road bilanciato. Assetto: equilibrata. Terreno: più a suo agio in bike park (gravity). Dalle metriche emergono sospensioni capaci su terreno sconnesso e un equilibrio tra comfort e reattività. Da tenere presente: meno focus sulla velocità pura rispetto ai setup più race. Se ti sembra vicina a ciò che vuoi, confrontala su MatchBikes.com.
7.0
Valutazione

Image 1 of 4
Score Summary
Prestazioni
6.6
Vestibilità
7.6
Prestazioni
Built for speed and efficiency
Velocità
2.2
Molto bassa
Efficienza in Salita
2.9
Pesante ma gestibile
Sospensione
10.0
Pronta per terreni estremi
Vestibilità
Dialed-in Fit & Comfort
Posizione di Guida
6.7
Bilanciata
Flessibilità Vestibilità
6.1
Moderatamente regolabile
Comfort di Guida
8.7
Bilanciata
Valore
Gamma Superfici
Bike ParkSpecifiche
Generale
Marca
Mondraker
Modello
SUMMUM
Anno
2023
Peso
18.4 kg
Categoria
Mountain
Sottocategoria
Downhill
Gruppo
GX, e*thirteen
Ruote
29"
Telaio
Telaio
Summum 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero suspension system, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, MAX. capacity dual row Enduro bearings, HHG internal cable routing, ISCG 05. *Optional Geometry kit
Forcella Ammortizzata
Rockshox Boxxer Select RC 29, 200mm, DebonAir+, 1-1/8” steerer tube, Boost 20x110mm axle, offset 52mm. Settings: low-speed compression, rebound, air preload
Ammortizzatore Posteriore
Rock Shox Super Deluxe Coil Select R, 225x70mm. LNM ST B1, Linear rebound, Medium compression, spring preload. Trunnion top mount, 30x8mm bottom bushings
Tipo di sospensione
Full
Trasmissione
Leve del Cambio
SRAM trigger GX DH 7s, X-actuation 1:1
Deragliatore Posteriore
SRAM GX DH, 7s, medium cage, X-actuation 1:1
Deragliatore Anteriore
E.13 Vario Compact Upper Slider,Alloy backplate,DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider
Guarnitura
SRAM Truvativ Descendant DH, DUB axle, Direct mount chain ring, 165mm CL 56´5, Rings: 34T, steel, X-SYNC
Movimento Centrale
SRAM DUB BSA, sealed bearings, 83mm
Catena
SRAM PC1110 11s, Powerlock
Ruote
Mozzo Anteriore
Mavic Boost 20x110mm, IS 6 bolts
Mozzo Posteriore
Mavic 12x157mm, ID360 freewheel, sealed bearings, IS 6 bolts, HG freehub
Cerchi
Mavic Deemax BikePark 29, 30mm internal width, 32 holes
Raggi
Mavic 32 steel flat spokes
Pneumatici
Front: Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead, Rear: Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead
Freni
Tipo di freno
Hydraulic Disc
Descrizione del freno
Front: SRAM DB8, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads, Rear: SRAM DB8, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Leve Freno
SRAM DB8, tool reach adjust, lever pivot bushings
Cockpit
Attacco Manubrio
Onoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
Manubrio
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Manopole
Onoff Twin, 1lock-on, 135mm
Seduta
Sella
SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sides
Reggisella
SDG Micro I-Beam SP-751 Alloy, diameter 31.6mm, length 300mm, micro-adjustment

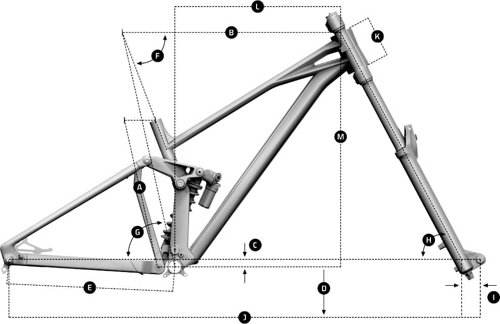

Geometria
| Misura | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.404 mm | 1.331 mm | 1.264 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 811 mm | 821 mm | 846 mm | 871 mm |
| Rake | 58 mm | 58 mm | 58 mm | 58 mm |
| Trail | 122 mm | 122 mm | 122 mm | 122 mm |
| Stack | 632 mm | 632 mm | 632 mm | 632 mm |
| Reach | 430 mm | 450 mm | 475 mm | 500 mm |
| Top Tube Length | 573 mm | 593 mm | 618 mm | 643 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 400 mm | 400 mm | 400 mm | 400 mm |
| Head Tube Angle | 63 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 112 mm | 112 mm | 112 mm | 112 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1260 mm | 1270 mm | 1295 mm | 1320 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
