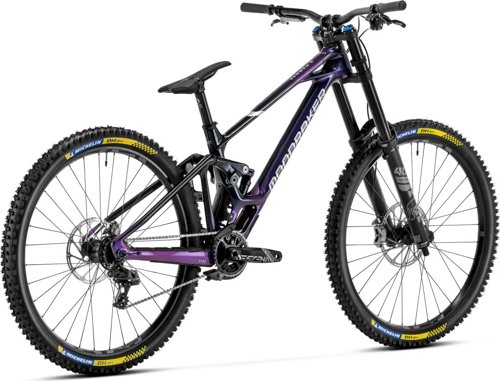

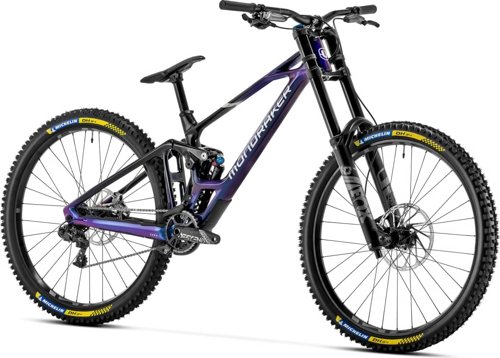

SUMMUM CARBON R
Mondraker
Downhill
SUMMUM CARBON R è una MTB downhill (2024) by Mondraker, parte della famiglia Summum. In pratica è un ottimo match per chi cerca un setup off-road bilanciato. Assetto: equilibrata. Uso: più a suo agio in bike park (gravity). Punti forti secondo le metriche: sospensioni capaci su terreno sconnesso e un feeling più confortevole sulle lunghe. Detto questo, Da tenere presente: meno focus sulla velocità pura rispetto ai setup più race e il value dipende più dalle priorità che dal solo prezzo. Se ti sembra vicina a ciò che vuoi, confrontala su MatchBikes.com.
6.0
Valutazione

Image 1 of 4
Score Summary
Prestazioni
6.9
Valore
1.1
Vestibilità
7.7
Prestazioni
Built for speed and efficiency
Velocità
2.6
Molto bassa
Efficienza in Salita
3.7
Pesante ma gestibile
Sospensione
10.0
Pronta per terreni estremi
Vestibilità
Dialed-in Fit & Comfort
Posizione di Guida
6.7
Bilanciata
Flessibilità Vestibilità
6.1
Moderatamente regolabile
Comfort di Guida
8.8
Confortevole
Valore
Rapporto Qualità-Prezzo
1.1
Sovrapprezzata
Gamma Superfici
Bike ParkSpecifiche
Generale
Marca
Mondraker
Modello
SUMMUM CARBON R
Anno
2024
Prezzo
$9,611
Peso
16.9 kg
Categoria
Mountain
Sottocategoria
Downhill
Gruppo
Truvativ Descendant, GX
Telaio
Telaio
Summum Carbon Stealth Air full Carbon, Zero Suspension System, 200mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, HHG internal cable routing, MAX. capacity dual row Enduro bearings, shock mudguard, ISCG 05, custom frame protectors. *Optional Geometry kit.
Forcella Ammortizzata
Fox 40 29 Float FIT GRIP EVOL Performance, 203mm, air spring, 1-1/8” steerer tube, 20x110mm axle, offset 56mm. Settings: low-speed compression, low-speed rebound, air preload
Ammortizzatore Posteriore
Fox DHX2 Performance Elite, 225x70mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
Tipo di sospensione
Full
Trasmissione
Leve del Cambio
SRAM trigger GX DH 7s, X-actuation 1:1
Deragliatore Posteriore
SRAM GX DH, 7s, medium cage, X-actuation 1:1
Deragliatore Anteriore
E.13 Vario Compact Upper Slider,Alloy backplate,DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider
Guarnitura
SRAM Truvativ Descendant DH, DUB axle, Direct mount chain ring, 165mm CL 56´5, Rings: 34T, steel, X-SYNC
Movimento Centrale
SRAM DUB BSA, sealed bearings, 83mm
Catena
SRAM PC1110 11s, Powerlock
Ruote
Mozzo Anteriore
e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Mozzo Posteriore
e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub
Cerchi
e*thirteen LG1 Plus DH, IW29 29" Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 32 spokes
Raggi
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Pneumatici
Front: Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead, Rear: Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead
Freni
Tipo di freno
Hydraulic Disc
Descrizione del freno
Front: SRAM Code Bronze Stealth, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads, Rear: SRAM Code Bronze Stealth, oversized 4-piston caliper, Centerline 203mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Leve Freno
SRAM Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust
Cockpit
Attacco Manubrio
Onoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
Manubrio
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Manopole
Onoff Desert, 1lock-on, 135mm
Seduta
Sella
SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sides
Reggisella
SDG Micro I-Beam SP-751 Alloy, diameter 31.6mm, length 300mm, micro-adjustment

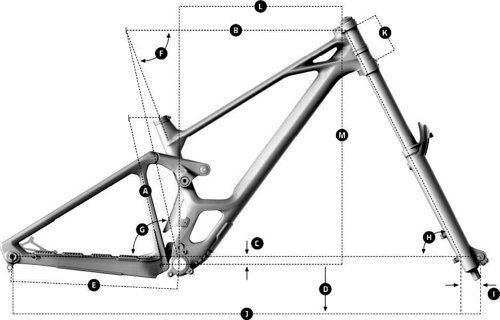

Geometria
| Misura | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.404 mm | 1.331 mm | 1.264 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 801 mm | 811 mm | 836 mm | 861 mm |
| Rake | 56 mm | 56 mm | 56 mm | 56 mm |
| Trail | 132 mm | 132 mm | 132 mm | 132 mm |
| Stack | 632 mm | 632 mm | 632 mm | 632 mm |
| Reach | 430 mm | 450 mm | 475 mm | 500 mm |
| Top Tube Length | 575 mm | 595 mm | 620 mm | 645 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 400 mm | 400 mm | 400 mm | 400 mm |
| Head Tube Angle | 63 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 110 mm | 110 mm | 110 mm | 110 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1260 mm | 1270 mm | 1295 mm | 1320 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
