SUMMUM CARBON RR
Mondraker
Downhill
SUMMUM CARBON RR è una MTB downhill (2023) by Mondraker, parte della famiglia Summum. Questa bici è pensata per chi cerca un setup off-road bilanciato. Postura: equilibrata. Terreno: più a suo agio in bike park (gravity). I principali punti nelle metriche MatchBikes sono sospensioni capaci su terreno sconnesso e un feeling più confortevole sulle lunghe. Il compromesso principale è meno focus sulla velocità pura rispetto ai setup più race. Aggiungila al confronto su MatchBikes.com e vedi come si posiziona.
7.1
Valutazione

Image 1 of 4
Score Summary
Prestazioni
6.8
Vestibilità
7.7
Prestazioni
Built for speed and efficiency
Velocità
2.8
Molto bassa
Efficienza in Salita
2.9
Pesante ma gestibile
Sospensione
10.0
Pronta per terreni estremi
Vestibilità
Dialed-in Fit & Comfort
Posizione di Guida
6.7
Bilanciata
Flessibilità Vestibilità
6.1
Moderatamente regolabile
Comfort di Guida
8.8
Confortevole
Valore
Gamma Superfici
Bike ParkSpecifiche
Generale
Marca
Mondraker
Modello
SUMMUM CARBON RR
Anno
2023
Peso
16.7 kg
Categoria
Mountain
Sottocategoria
Downhill
Gruppo
Saint, e*thirteen
Ruote
29"
Telaio
Telaio
Summum Carbon Stealth Air full Carbon, Zero Suspension System, 200mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, HHG internal cable routing, MAX. capacity dual row Enduro bearings, shock mudguard, ISCG 05, custom frame protectors. *Geometry kit included. MIND System V2
Forcella Ammortizzata
Fox 40 29 Float FIT GRIP2 EVOL Factory Kashima, 203mm, air spring, 1-1/8” steerer tube, 20x110mm axle, offset 56mm. Settings: high and low-speed compression, high and low-speed rebound, air preload
Ammortizzatore Posteriore
Fox DHX2 Factory Kashima, 225x70mm. Settings: high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring. Trunnion top mount, 30x8mm bottom bushings
Tipo di sospensione
Full
Trasmissione
Leve del Cambio
Shimano Saint SL-M820 10s, low friction multi bearing, instant release, multi release, 2-way release
Deragliatore Posteriore
Shimano Saint RD-M820-SS, 10s, Shadow+, short cage
Deragliatore Anteriore
E.13 Vario Compact Upper Slider,Alloy backplate,DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider
Guarnitura
Shimano Saint M825 Hollowtech II, reinforced steel axle, 165mm, Rings: 36T, aluminum, BCD 104
Movimento Centrale
Shimano 83mm
Catena
Shimano HG95, 10s
Ruote
Mozzo Anteriore
e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Mozzo Posteriore
e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub
Cerchi
e*thirteen LG1 Race Carbon, IW30 29" Hookless, World Cup carbon fiber, 30mm internal width, tubeless ready, 32 spokes
Raggi
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Pneumatici
Front: Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead, Rear: Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead
Freni
Tipo di freno
Hydraulic Disc
Descrizione del freno
Front: Shimano Saint M820, 4-piston caliper, RT86 203mm 2-piece IS 6 bolts rotor with ICE technology, resin pads with cooler, Rear: Shimano Saint M820, 4-piston caliper, RT86 203mm 2-piece IS 6 bolts rotor with ICE technology, resin pads with cooler
Leve Freno
Shimano Saint, ergonomic antiskid lever with servo wave, free stroke and tool less reach adjust
Cockpit
Attacco Manubrio
Onoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
Manubrio
Renthal Fatbar series 7 alloy, rise: 30mm, width: 800mm, 7º backsweep, 5º upsweep, 31.8mm barbore
Manopole
Renthal, double lock-on, kevlar compound, 130mm
Seduta
Sella
SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sides
Reggisella
SDG Micro I-Beam SP-951 Carbon, diameter 31.6mm, length 300mm, micro-adjustment

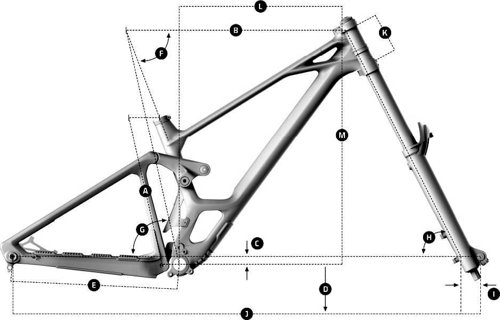

Geometria
| Misura | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.407 mm | 1.331 mm | 1.264 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 801 mm | 811 mm | 836 mm | 861 mm |
| Rake | 56 mm | 56 mm | 56 mm | 56 mm |
| Trail | 132 mm | 132 mm | 132 mm | 132 mm |
| Stack | 632 mm | 633 mm | 632 mm | 632 mm |
| Reach | 430 mm | 450 mm | 475 mm | 500 mm |
| Top Tube Length | 575 mm | 595 mm | 620 mm | 645 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 400 mm | 400 mm | 400 mm | 400 mm |
| Head Tube Angle | 63 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 110 mm | 110 mm | 112 mm | 112 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1260 mm | 1270 mm | 1295 mm | 1320 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
