SUMMUM CARBON RR
Mondraker
Downhill
SUMMUM CARBON RR è una MTB downhill (2024) by Mondraker, parte della famiglia Summum. Questa bici è pensata per chi cerca un setup off-road bilanciato. Postura: equilibrata. Uso: più a suo agio in bike park (gravity). Dalle metriche emergono sospensioni capaci su terreno sconnesso e velocità equilibrata e versatile per l’uso quotidiano. Il lato meno forte è un feeling più rigido rispetto alle opzioni comfort-first e più orientata al pianeggiante/ondulato che alle salite. Se ti sembra vicina a ciò che vuoi, confrontala su MatchBikes.com.
6.3
Valutazione

Image 1 of 2
Score Summary
Prestazioni
7.0
Valore
4.5
Vestibilità
6.4
Prestazioni
Built for speed and efficiency
Velocità
5.0
Bassa
Efficienza in Salita
1.4
Passista da pianura
Sospensione
10.0
Pronta per terreni estremi
Vestibilità
Dialed-in Fit & Comfort
Posizione di Guida
6.7
Bilanciata
Flessibilità Vestibilità
5.9
Moderatamente regolabile
Comfort di Guida
6.5
Rigida da gara
Valore
Rapporto Qualità-Prezzo
4.5
Scarso valore
Gamma Superfici
Bike ParkSpecifiche
Generale
Marca
Mondraker
Modello
SUMMUM CARBON RR
Anno
2024
Prezzo
$4,992
Categoria
Mountain
Sottocategoria
Downhill
Ruote
29"
Telaio
Telaio
Summum Carbon Stealth Air full Carbon, Zero Suspension System, 200mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, HHG internal cable routing, MAX. capacity dual row Enduro bearings, shock mudguard, ISCG 05, custom frame protectors. *Geometry kit included.
Ammortizzatore Posteriore
Fox DHX2 Factory Kashima, 225x70mm. Settings: high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring. Trunnion top mount, 30x8mm bottom bushings
Tipo di sospensione
Full
Trasmissione
Movimento Centrale
BSA, 83mm, threaded
Freni
Tipo di freno
Hydraulic Disc
Descrizione del freno
Hydraulic Disc
Cockpit
Attacco Manubrio
Onoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer

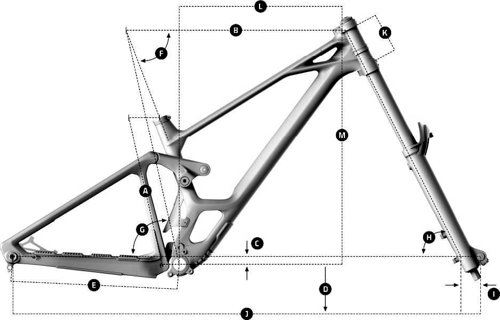

Geometria
| Misura | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.407 mm | 1.331 mm | 1.264 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 801 mm | 811 mm | 836 mm | 861 mm |
| Rake | 56 mm | 56 mm | 56 mm | 56 mm |
| Trail | 132 mm | 132 mm | 132 mm | 132 mm |
| Stack | 632 mm | 633 mm | 632 mm | 632 mm |
| Reach | 430 mm | 450 mm | 475 mm | 500 mm |
| Top Tube Length | 575 mm | 595 mm | 620 mm | 645 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 400 mm | 400 mm | 400 mm | 400 mm |
| Head Tube Angle | 63 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 110 mm | 110 mm | 112 mm | 112 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1260 mm | 1270 mm | 1295 mm | 1320 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
