RAZE
Mondraker
Trail
RAZE è una MTB trail (2024) di Mondraker, parte della famiglia Raze. In pratica è un ottimo match per chi cerca un feeling off-road più attivo e orientato alla performance. Postura: sportiva e attiva. Uso: a suo agio su trail naturali e terreno misto. A livello di metriche, spicca per un feeling più confortevole sulle lunghe, molto a suo agio in salita su sforzi lunghi e sospensioni capaci su terreno sconnesso. Rispetto a opzioni più specialistiche, il compromesso è meno focus sulla velocità pura rispetto ai setup più race e un fit più specifico che può andare bene a meno persone. Prossimo passo: confronta questa bici su MatchBikes.com.
6.1
Valutazione

Image 1 of 4
Score Summary
Prestazioni
6.3
Valore
5.5
Vestibilità
6.3
Prestazioni
Built for speed and efficiency
Velocità
3.4
Molto bassa
Efficienza in Salita
8.0
Scalatrice
Sospensione
7.0
Pronta ai grandi impatti
Vestibilità
Dialed-in Fit & Comfort
Posizione di Guida
7.1
Sportiva
Flessibilità Vestibilità
2.8
Assetto specifico gara
Comfort di Guida
8.0
Confortevole
Valore
Rapporto Qualità-Prezzo
5.5
Scarso valore
Gamma Superfici
Trail naturaliSpecifiche
Generale
Marca
Mondraker
Modello
RAZE
Anno
2024
Prezzo
$3,744
Peso
15.9 kg
Categoria
Mountain
Sottocategoria
Trail
Gruppo
SX Eagle
Ruote
29"
Telaio
Telaio
Raze 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05
Forcella Ammortizzata
RockShox 35 Gold 29 RL, 150mm, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
Ammortizzatore Posteriore
Fox Float EVOL Performance, 205x57.5mm. Settings: 2-position compression adjustment (Open/Firm), rebound, air preload. Trunnion top mount, 25x8mm bottom bushings
Tipo di sospensione
Full
Trasmissione
Leve del Cambio
SRAM Trigger SX Eagle, 12s, X-Actuation 1:1
Deragliatore Posteriore
SRAM SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Guarnitura
SRAM SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm, CL 52, Rings: 32T, steel, X-Sync 2
Movimento Centrale
SRAM DUB BSA, sealed bearings, 73mm
Catena
SRAM SX Eagle, 12s, Powerlock
Ruote
Mozzo Anteriore
Mavic Boost 15x110mm, sealed bearings, IS 6 bolts
Mozzo Posteriore
Mavic ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, HG freehub
Cerchi
Mavic CrossRide 29 Boost, 30mm internal width, tubeless ready, 28 spokes
Raggi
Mavic 28 round j-bend stainless steel
Pneumatici
Front: Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead, Rear: Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Freni
Tipo di freno
Hydraulic Disc
Descrizione del freno
Front: SRAM Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad, Rear: SRAM Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
Leve Freno
SRAM Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings
Cockpit
Attacco Manubrio
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Manubrio
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Manopole
Onoff Twin, 1lock-on, 135mm
Seduta
Sella
Mondraker MDK Series, SRX, steel rail
Reggisella
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm

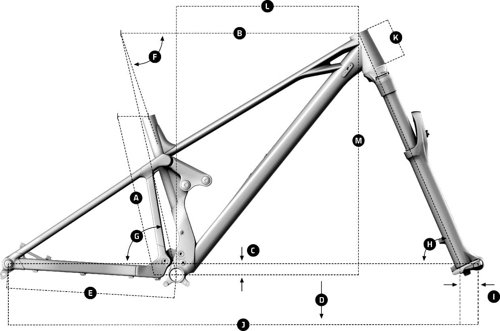

Geometria
| Misura | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.384 mm | 1.326 mm | 1.308 mm | 1.257 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 764 mm | 783 mm | 812 mm | 832 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 129 mm | 129 mm | 128 mm | 128 mm |
| Stack | 623 mm | 623 mm | 641 mm | 641 mm |
| Reach | 450 mm | 470 mm | 490 mm | 510 mm |
| Top Tube Length | 594 mm | 614 mm | 638 mm | 658 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 375 mm | mm | 445 mm | 490 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm | 120 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1197 mm | 1216 mm | 1246 mm | 1266 mm |
| Bottom Bracket Drop | 29 mm | 29 mm | 29 mm | 29 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
