RAZE CARBON RR SL
Mondraker
Trail
RAZE CARBON RR SL è una MTB trail (2024) di Mondraker. È ideale per chi cerca un feeling off-road più attivo e orientato alla performance. Assetto: sportiva e attiva. Uso: a suo agio su trail naturali e terreno misto. Dalle metriche emergono molto a suo agio in salita su sforzi lunghi, un feeling più confortevole sulle lunghe e sospensioni capaci su terreno sconnesso. Detto questo, Rispetto a opzioni più specialistiche, il compromesso è il value dipende più dalle priorità che dal solo prezzo. Confronta questa bici su MatchBikes.com con modelli trail simili.
6.0
Valutazione

Image 1 of 4
Score Summary
Prestazioni
7.1
Valore
1.1
Vestibilità
7.3
Prestazioni
Built for speed and efficiency
Velocità
5.6
Bassa
Efficienza in Salita
9.2
Capra di montagna
Sospensione
7.0
Pronta ai grandi impatti
Vestibilità
Dialed-in Fit & Comfort
Posizione di Guida
7.2
Sportiva
Flessibilità Vestibilità
6.2
Moderatamente regolabile
Comfort di Guida
8.0
Confortevole
Valore
Rapporto Qualità-Prezzo
1.1
Sovrapprezzata
Gamma Superfici
Trail naturaliSpecifiche
Generale
Marca
Mondraker
Modello
RAZE CARBON RR SL
Anno
2024
Prezzo
$12,733
Peso
13.3 kg
Categoria
Mountain
Sottocategoria
Trail
Gruppo
XX Eagle Transmission, X01 Eagle AXS
Ruote
29"
Telaio
Telaio
Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.
Forcella Ammortizzata
Fox 36 29 Float GRIP2 Factory Kashima, 150mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Ammortizzatore Posteriore
Fox Float Factory Kashima EVOL, 205x57.5mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Tipo di sospensione
Full
Trasmissione
Leve del Cambio
SRAM Eagle AXS Pod MMX, 12s
Deragliatore Posteriore
SRAM XX Eagle AXS, T-Type roller bearing clutch, cage lock, long carbon cage, 1x12s
Guarnitura
SRAM XX Carbon Eagle T-Type, Boost, DUB axle, Direct mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL55, Rings: 32T, CNC-machined alloy, T-Type
Movimento Centrale
SRAM DUB BSA, sealed bearings, 73mm
Catena
SRAM X0 Eagle T-Type, 12s, Powerlock
Ruote
Mozzo Anteriore
Mavic Infinity hub, Boost 15x110mm, IS 6 bolts
Mozzo Posteriore
Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, XD freehub
Cerchi
Mavic CrossMax Carbon XL R, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes
Raggi
Mavic 24 straight-pull double butted spokes
Pneumatici
Front: Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead, Rear: Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Freni
Tipo di freno
Hydraulic Disc
Descrizione del freno
Front: SRAM Level Ultimate Stealth, 4-piston caliper, HS2 180mm IS 6 bolts one-piece rotor, steel-backed organic pads, Rear: SRAM Level Ultimate Stealth, 4-piston caliper, HS2 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Leve Freno
SRAM Level Ultimate, tools-free reach adjust, lever pivot bearings, carbon lever
Cockpit
Attacco Manubrio
Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Manubrio
Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Manopole
Onoff Desert, 1lock-on, 135mm
Seduta
Sella
Fizik Vento Argo X5
Reggisella
RockShox Reverb Stealth AXS, diameter 31.6mm S size: 340x125mm M size: 390x150mm L size: 440x170mm XL size: 440x170mm

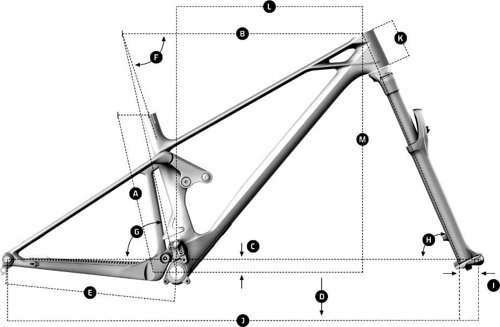

Geometria
| Misura | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.336 mm | 1.299 mm | 1.275 mm | 1.252 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 760 mm | 784 mm | 810 mm | 836 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 130 mm | 130 mm | 157 mm | 131 mm |
| Stack | 608 mm | 617 mm | 631 mm | 645 mm |
| Reach | 455 mm | 475 mm | 495 mm | 515 mm |
| Top Tube Length | 595 mm | 620 mm | 645 mm | 670 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 375 mm | 415 mm | 445 mm | 500 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 90 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1193 mm | 1217 mm | 1243 mm | 1269 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | -30 mm | 30 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
