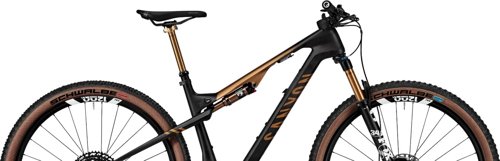

Lux Trail CFR
Canyon
Crosscountry
Lux Trail CFR è una MTB cross-country (2024) by Canyon, parte della famiglia Lux. È ideale per chi cerca un feeling off-road più attivo e orientato alla performance. Assetto: sportiva e attiva. Terreno: ideale su trail scorrevoli. A livello di metriche, spicca per molto a suo agio in salita su sforzi lunghi, ottimo potenziale di velocità su scorrevole e un feeling più confortevole sulle lunghe. Il lato meno forte è il value dipende più dalle priorità che dal solo prezzo. Usa MatchBikes.com per confrontarla con alternative cross-country vicine.
6.5
Valutazione

+3
Image 1 of 9
Score Summary
Prestazioni
8.0
Valore
1.4
Vestibilità
7.4
Prestazioni
Built for speed and efficiency
Velocità
7.4
Alta
Efficienza in Salita
9.4
Capra di montagna
Sospensione
6.0
Controllo sicuro sui trail
Vestibilità
Dialed-in Fit & Comfort
Posizione di Guida
8.0
Sportiva
Flessibilità Vestibilità
6.9
Moderatamente regolabile
Comfort di Guida
7.5
Confortevole
Valore
Rapporto Qualità-Prezzo
1.4
Sovrapprezzata
Gamma Superfici
Trail scorrevoliSpecifiche
Generale
Marca
Canyon
Modello
Lux Trail CFR
Anno
2024
Prezzo
$7,350
Peso
11.25 kg
Categoria
Mountain
Sottocategoria
Crosscountry
Gruppo
XTR
Ruote
29"
Telaio
Telaio

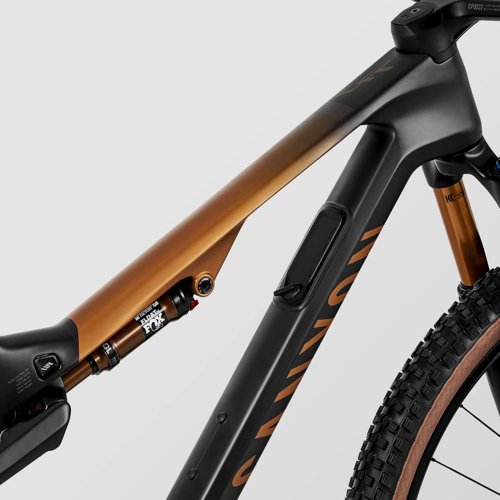

Canyon Lux Trail CFR, Superlight, pro-level CFR build of the ultra-capable Lux Trail down-country bike, delivering the highest levels of climbing efficiency and descending performance., Axle dimension: 12x148 mm, Material: Carbon (CFR)
Forcella Ammortizzata

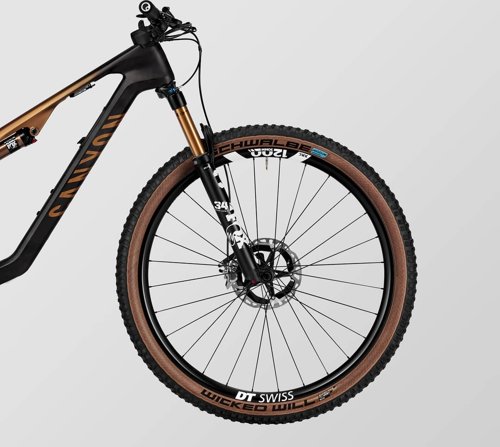

FOX 34 Stepcast Factory Remote, Axle dimension: 15x110 mm, Travel: 120 mm, Fork steer tube diameter: 1 1/8" - 1,5"
Ammortizzatore Posteriore
FOX Float SL Factory Remote
Tipo di sospensione
Full
Trasmissione
Leve del Cambio

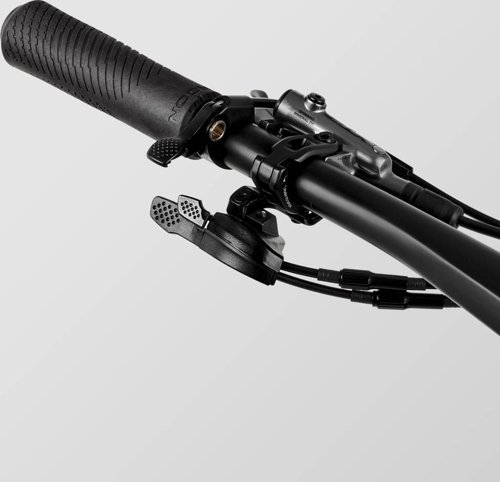

Shimano XTR, 12-speed
Deragliatore Posteriore
Shimano XTR, 12-speed, Cage length: long, Weight: 230 g
Cassetta
Shimano XTR CS-M9101 12s 10-51, Number of sprockets: 12 | Shimano XTR CS-M9100 12-speed Cassette 10-51
Guarnitura

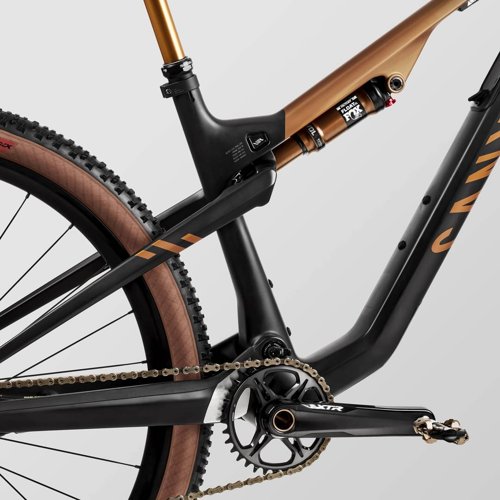

Shimano XTR M9125 34T, Number of chainrings: 1
Movimento Centrale
Shimano BSA BB93, Bottom bracket standard: BSA 68/73
Catena
Shimano M9100 XTR Chain, SIL-TEC treatment for extended offroad durability, HYPERGLIDE+ shift technology, quick link for easy connect and tool-free assembly | Shimano SM-CN910 12-speed Quick-Link Chain Connector | Shimano XTR CN-M9100 12-speed Chain 138 Links
Ruote
Cerchi
DT Swiss XRC 1200 Spline, Axle dimension: 12x148 mm, Rotor mount: Center Lock, Inner width: 30 mm, Weight: 799 g | DT Swiss XRC 1200 Spline, Axle dimension: 15x110 mm, Rotor mount: Center Lock, Inner width: 30 mm, Weight: 679 g
Pneumatici
Schwalbe Racing Ralph SR TLE EVO 2.35", Width: 2.35" | Schwalbe Wicked Will SR TLE EVO 2.4", Width: 2.4"
Freni
Tipo di freno
Hydraulic Disc
Descrizione del freno
Shimano XTR, Number of pistons: 2 | Shimano M9110, Number of pistons: 2
Cockpit
Manopole
Ergon GXR
Seduta
Sella
Ergon SM10 Pro, Gender: Male, Weight: 235 g
Reggisella
FOX Transfer SL Factory, Clamp diameter: 31,6 mm, Material: Aluminium (AL), Weight: 421 g
Geometria
| Misura | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.345 mm | 1.3 mm | 1.275 mm | 1.252 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 697 mm | 723 mm | 748 mm | 774 mm | 800 mm |
| Rake | 46 mm | 46 mm | 45 mm | 45 mm | 45 mm |
| Trail | 109 mm | 109 mm | 110 mm | 110 mm | 110 mm |
| Stack | 589 mm | 589 mm | 598 mm | 612 mm | 626 mm |
| Reach | 412 mm | 438 mm | 460 mm | 480 mm | 500 mm |
| Top Tube Length | 559 mm | 585 mm | 609 mm | 633 mm | 656 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 415 mm | 420 mm | 420 mm | 450 mm | 480 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1129 mm | 1155 mm | 1180 mm | 1206 mm | 1232 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 768 mm | 768 mm | 772 mm | 777 mm | 783 mm |
| Front Travel | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm |
| Rear Travel | 115 mm | 115 mm | 115 mm | 115 mm | 115 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Max Height | 167 cm | 176 cm | 184 cm | 193 cm | cm |
